Construction Calculator

Ladder Stairway

For an elevated hunting blind or platform

Climbing up or climbing down, you are always facing forward toward the platform.

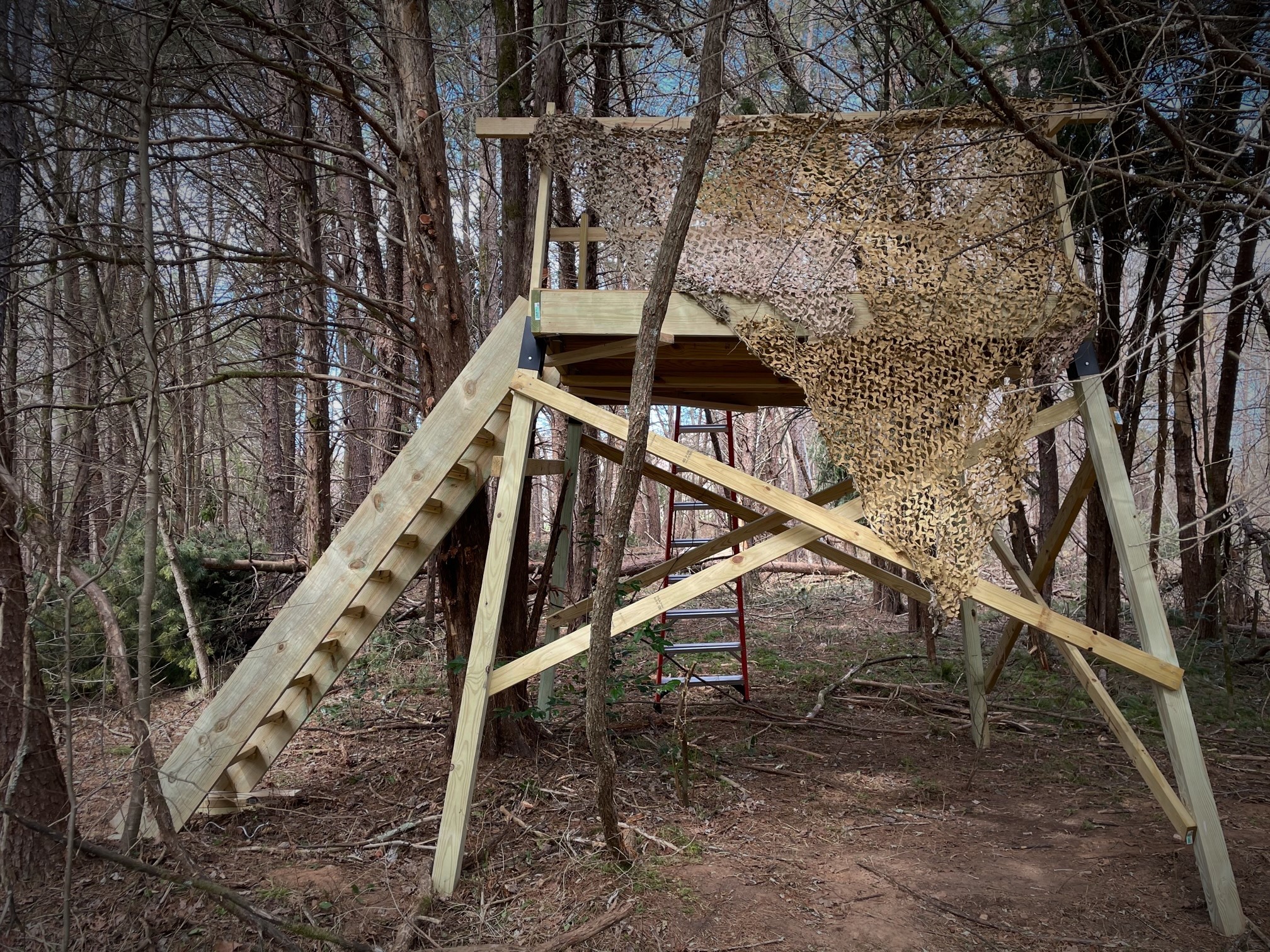

Elevated Hillcrest hunting blind

Definitions

Plan the tread layout

  1. Height is the right-angle distance from ground to upper floor.
  2. Runner length is the hypotenuse of the stairway triangle.
  3. The tread is the actual step resting on a cleat.
  4. The calculation assumes a desirable 7.5-inch tread height and 1.5-inch tread thickness.
  5. Enter all measurements in inches.

Common configurations include a 120-inch platform height with a 144-inch runner, or a 96-inch platform height with a 120-inch runner.

Treadline distances

    The lower treadline is where the top of the cleat is placed. Adding the 1.5-inch tread places the top of each step at the upper treadline.

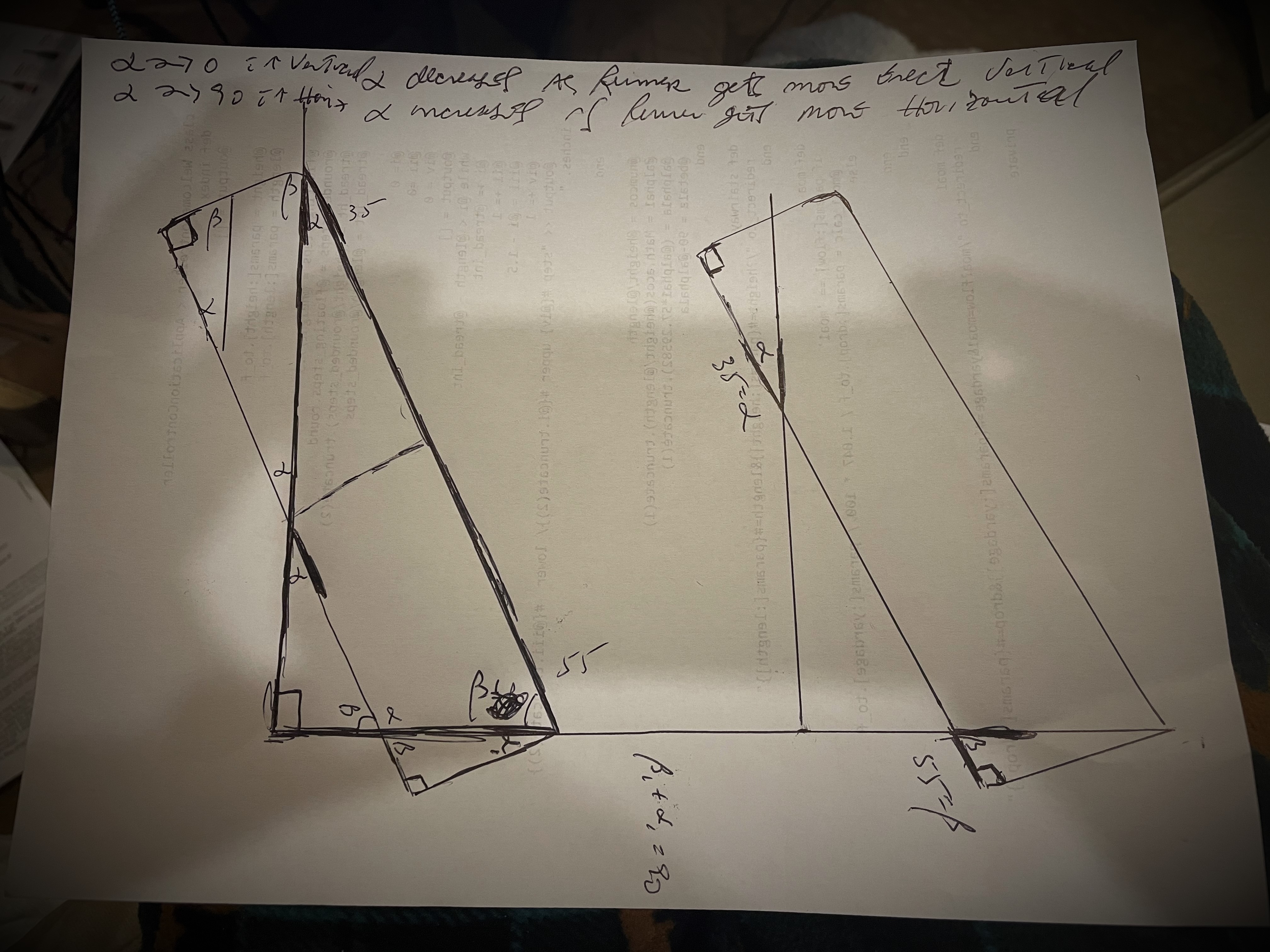

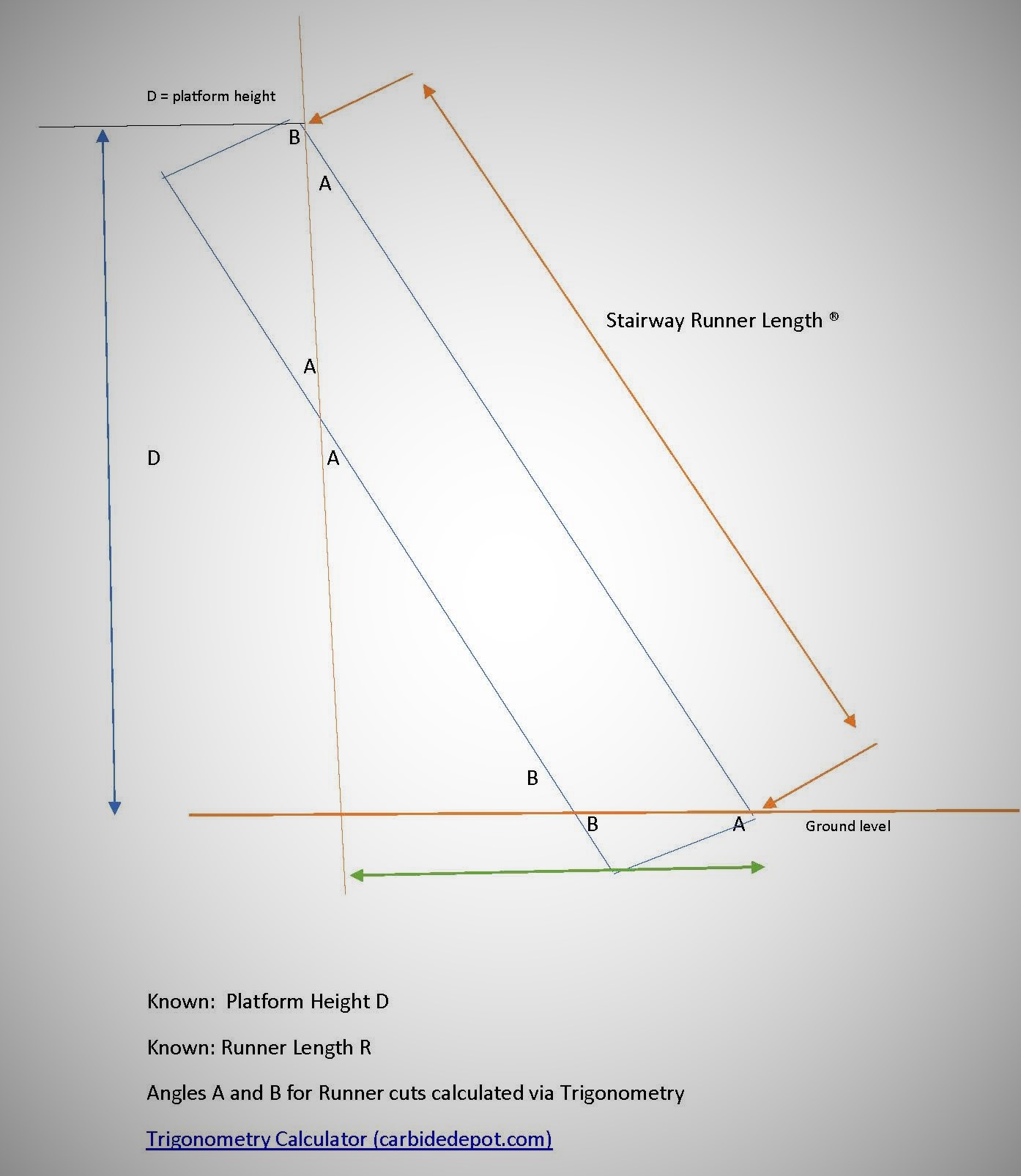

    Ladder stairway constructionCompleted ladder stairway
